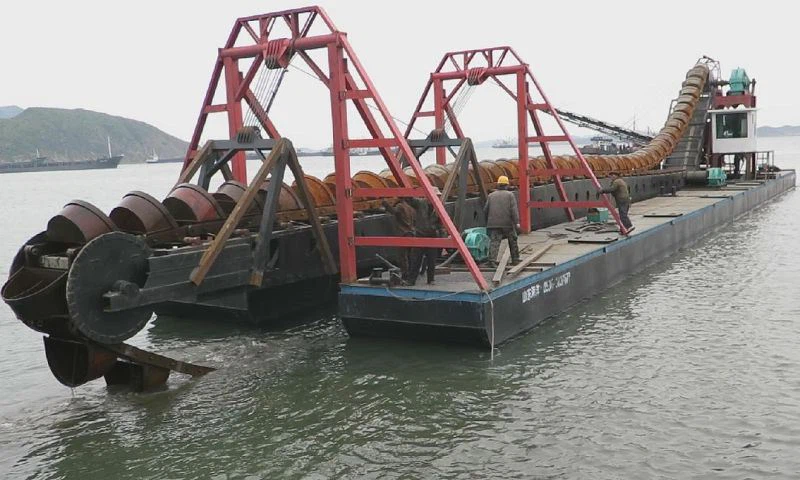

13. 100M3 130M3 160M3 240M3 BUCKET DRDEGER
Quick Details
Applicable Industries:Energy & Mining, Construction works , Energy & Mining
Local Service Location:Indonesia, India, Bangladesh, Nigeria
Showroom Location:Bangladesh, Nigeria
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Condition:New
Type:Bucket Dredger, dismountable modulary structure
Power Type:Diesel
Dredging Depth:15 m
Draught:130 cm
Place of Origin:Shandong, China
Dimension(L*W*H):40m*7.8m*2m
Weight:170 tons
Certification:ISO9001:2015
Warranty:1 Year
After-sales Service Provided:Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
Application:dredging, desilting, river dredging, port deepening, land reclaimation
Paint:reputed marine paint
Color:as per customer's request
Dredging capacity:500m3/hr
Power selection:Electric drive or hydraulic drive
Dredging depth:15m or customized

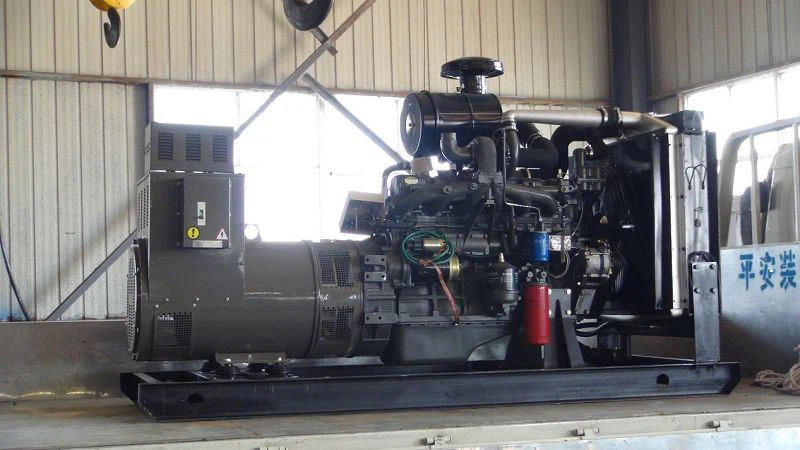

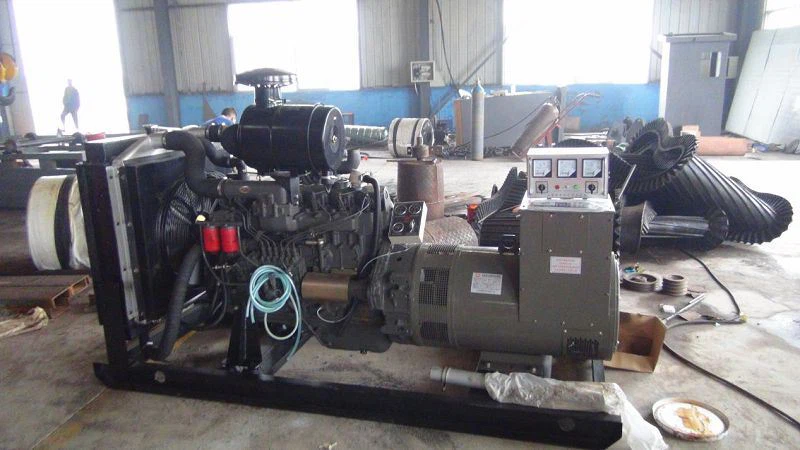

Engine options:Cummins, CAT, Weichai, Jichai, etc.
Dredgers specs
|
Bucket Dredger |
||||
|
Name/Model |
TBD60-10 |
TBD60-15 |
TBD60-20 |
TBD60-25 |
|
Dredging capacity(T)/Dredging depth(m) |
100/1-10m |
100/1-15 |
100/1--20 |
100/1--25 |
|
Dredger LOA(m) |
24 |
31 |
38 |
46 |
|
Length(m) |
20 |
27 |
33 |
41 |
|
Width(m) |
4.5 |
5.1 |
5.1 |
5.5 |
|
Deepth(m) |
0.9 |
1 |
1.4 |
1.4 |
|
Monomer width(m) |
1.5 |
1.8 |
1.8 |
2 |
|
Slot width(m) |
1.5 |
1.5 |
1.5 |
1.5 |
|
Rib distance(mm) |
600 |
600 |
600 |
600 |
|
Draught(m) |
0.5 |
0.6 |
0.8 |
0.8 |
|
Displacement(t) |
33 |
56 |
92 |
128 |
|
Structural style |
Assembly structure (removable) |
|||
|
Total length of bucket bridge(m) |
20 |
27 |
34 |
42 |
|
Max.dredging depth(m) |
10 |
15 |
20 |
25 |
|
Lifting power kw/ reducer |
5.5/ZQ350 |
7.5/ZQ400 |
15/ZQ500 |
18.5/ZQ500 |
|
Capacity of bucket |
0.035 |
0.035 |
0.38 |
0.04 |
|
Bucket speed |
30 |
30 |
28 |
26 |
|
Bucket power kw/ reducer |
18.5/ZQ650 |
22/ZQ650 |
37/ZQ850 |
55/ZQ1000 |
|
Chain plate material (warranty 2 years) |
Mn13Cr2(casting) |
|||
|
Separation system selection |
1-4 kinds of separation |
|||
|
(vibration / roll) |
||||
|
Conveying distance(belt / pipe) |
≤15/700 |
|||
|
Electric control cabinet |
Closed leakage protection |
|||
|
Console |
Sensor control |
|||
|
Cab material |
steeliness |
|||
|
Bucket speed control |
Constant / adjustable |
|||
|
Crew room / kitchen / washroom |
selectable |
|||
|
Total power/kw |
50/75 |
75/100 |
100/120 |
120/150 |
|
Bucket Dredger |
||||
|
Name/Model |
TBD80-10 |
TBD80-15 |
TBD80-20 |
TBD80-25 |
|
Dredging capacity(T)/Dredging depth(m) |
130/1-10 |
130/1-15 |
130/1--20 |
130/1-25 |
|
Dredger LOA(m) |
24 |
31 |
38 |
46 |
|
Length(m) |
20 |
27 |
33 |
41 |
|
Width(m) |
4.5 |
5.1 |
5.1 |
5.5 |
|
Deepth(m) |
1,0 |
1 |
1.4 |
1.4 |
|
Monomer width(m) |
1.5 |
1.8 |
1.8 |
2 |
|
Slot width(m) |
1.5 |
1.5 |
1.5 |
1.5 |
|
Rib distance(mm) |
600 |
600 |
600 |
600 |
|
Draught(m) |
0.6 |
0.6 |
0.8 |
0.8 |
|
Displacement(t) |
37 |
56 |
92 |
128 |
|
Structural style |
Assembly structure (removable) |
|||
|
Total length of bucket bridge(m) |
20 |
27 |
34 |
42 |
|
Max.dredging depth(m) |
10 |
15 |
20 |
25 |
|
Lifting power kw/ reducer |
7.5/ZQ350 |
11/ZQ400 |
15/ZQ500 |
18.5/ZQ500 |
|
Capacity of bucket |
0.045 |
0.045 |
0.048 |
0.052 |
|
Bucket speed |
30 |
30 |
28 |
26 |
|
Bucket power kw/ reducer |
22/ZQ650 |
30/ZQ750 |
37/ZQ850 |
55/ZQ1150 |
|
Chain plate material (warranty 2 years) |
Mn13Cr2(casting) |
|||
|
Separation system selection |
1-4 kinds of separation |
|||
|
(vibration / roll) |
||||
|
Conveying distance(belt / pipe) |
≤15/700 |
|||
|
Electric control cabinet |
Closed leakage protection |
|||
|
Console |
Sensor control |
|||
|
Cab material |
steeliness |
|||
|
Bucket speed control |
Constant / adjustable |
|||
|
Crew room / kitchen / washroom |
selectable |
|||
|
Total power/kw |
50/75 |
75/100 |
120/150 |
150/180 |
|
Bucket Dredger |
||||
|
Name/Model |
EBSD100-10 |
EBSD100-15 |
EBSD100-20 |
EBSD100-25 |
|
Dredging capacity(T)/Dredging depth(m) |
160/1-10 |
160/1-15 |
160/1--20 |
160/1-25 |
|
Dredger LOA(m) |
25 |
31 |
38 |
46 |
|
Length(m) |
21 |
27 |
33 |
41 |
|
Width(m) |
5.4 |
5.4 |
5.8 |
6.2 |
|
Deepth(m) |
1,0 |
1.2 |
1.4 |
1.4 |
|
Monomer width(m) |
1.8 |
1.8 |
2 |
2.2 |
|
Slot width(m) |
1.8 |
1.8 |
1.8 |
1.8 |
|
Rib distance(mm) |
600 |
600 |
600 |
600 |
|
Draught(m) |
0.6 |
0.7 |
0.8 |
0.8 |
|
Displacement(t) |
43 |
65 |
102 |
140 |
|
Structural style |
Assembly structure (removable) |
|||
|
Total length of bucket bridge(m) |
21 |
27 |
34 |
42 |
|
Max.dredging depth(m) |
10 |
15 |
20 |
25 |
|
Lifting power kw/ reducer |
7.5/ZQ400 |
11/ZQ500 |
18.5/ZQ500 |
22/ZQ650 |
|
Capacity of bucket |
0.06 |
0.06 |
0.06 |
0.065 |
|
Bucket speed |
28 |
28 |
28 |
26 |
|
Bucket power kw/ reducer |
30/ZQ750 |
30/ZQ850 |
45/ZQ1000 |
75/ZQ1250 |
|
Chain plate material (warranty 2 years) |
Mn13Cr2(casting) |
|||
|
Separation system selection |
1-4 kinds of separation |
|||
|
(vibration / roll) |
||||
|
Conveying distance(belt / pipe) |
≤15/700 |
|||
|
Electric control cabinet |
Closed leakage protection |
|||
|
Console |
Sensor control |
|||
|
Cab material |
steeliness |
|||
|
Bucket speed control |
Constant / adjustable |
|||
|
Crew room / kitchen / washroom |
selectable |
|||
|
Total power/kw |
75/100 |
100/120 |
150/180 |
150/180 |
|
Bucket Dredger |
||||
|
Name/Model |
TBD150-10 |
TBD150-15 |
TBD150--20 |
TBD150-25 |
|
Dredging capacity(T)/Dredging depth(m) |
240/1-10 |
240/1-15 |
240/1--20 |
240/1-25 |
|
Dredger LOA(m) |
25 |
31 |
38 |
46 |
|
Length(m) |
21 |
27 |
33 |
41 |
|
Width(m) |
5.4 |
5.4 |
5.8 |
6.2 |
|
Deepth(m) |
1,2 |
1,2 |
1,4 |
1,4 |
|
Monomer width(m) |
1.8 |
1.8 |
2 |
2.2 |
|
Slot width(m) |
1.8 |
1.8 |
1.8 |
1.8 |
|
Rib distance(mm) |
600 |
600 |
600 |
600 |
|
Draught(m) |
0.7 |
0.7 |
0.8 |
0.8 |
|
Displacement(t) |
50 |
65 |
102 |
140 |
|
Structural style |
Assembly structure (removable) |
|||
|
Total length of bucket bridge(m) |
21 |
27 |
34 |
42 |
|
Max.dredging depth(m) |
10 |
15 |
20 |
25 |
|
Lifting power kw/ reducer |
11/ZQ400 |
15/ZQ500 |
18.5/ZQ500 |
22/ZQ650 |
|
Capacity of bucket |
0.09 |
0.09 |
0.09 |
0.1 |
|
Bucket speed |
28 |
28 |
28 |
26 |
|
Bucket power kw/ reducer |
30/ZQ750 |
37/ZQ850 |
55/ZQ1000 |
75/ZQ1250 |
|
Chain plate material |
Mn13Cr2(casting) |
|||
|
(warranty 2 years) |
||||
|
Separation system selection |
kinds of separation |
|||
|
(vibration / roll) |
||||
|
Conveying distance(belt / pipe) |
≤15/700 |
|||
|
Electric control cabinet |
Closed leakage protection |
|||
|
Console |
Sensor control |
|||
|
Cab material |
steeliness |
|||
|
Bucket speed control |
Constant / adjustable |
|||
|
Crew room / kitchen / washroom |
selectable |
|||
|
Total power/kw |
100/125 |
120/150 |
150/180 |
180/200 |

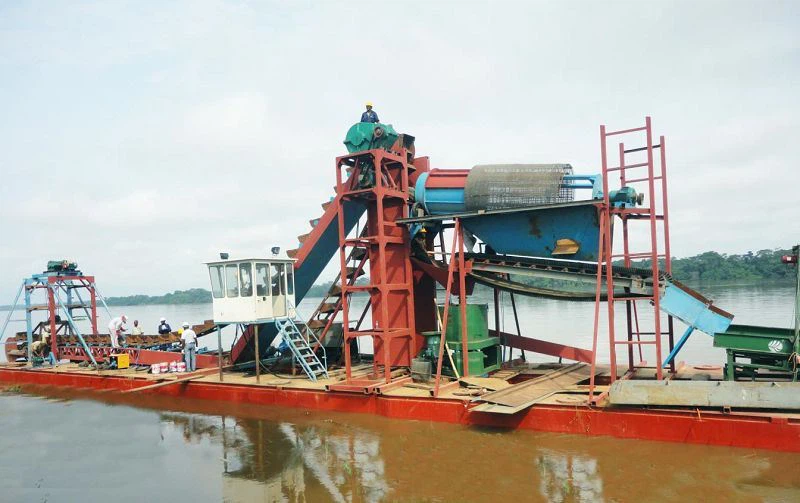

Optional devices
Optional Device:

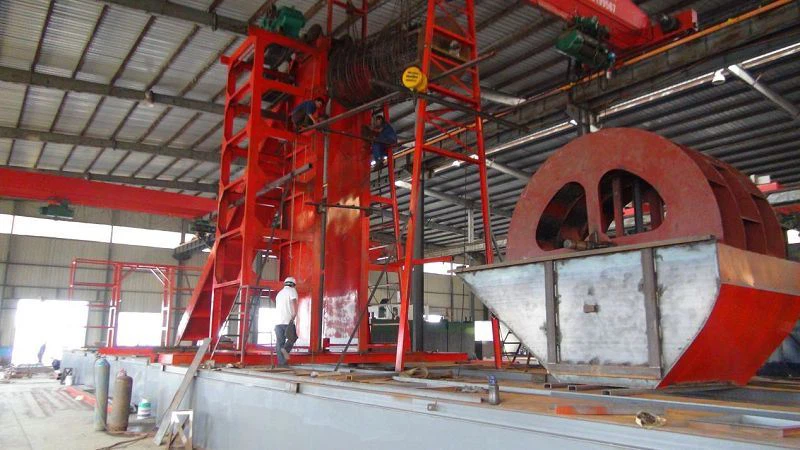

---- Sand washing equipment;
---- Gravel separation equipment;
---- Gravel crushing equipment;
---- Mineral processing equipment;
---- Belt conveyors;
----Hydraulic power equipment, ;
---- auxiliary work boats and gravel transport ships
---- others based on buyer's need
Dredger Feature
1)Great Adaptability. 100M3 bucket drdeger can be widely used in river, lake, sea, reservoir and so on for sand/mud dredging, waterway cleaning and reclamaition work.
2). High Efficiency. 130M3 bucket drdeger can dredge and discharge sand/mud at the same time without other ships for transportation.
3). Easy Operation. With hydraulic system and PLC control system, all the dredgers operation can be done in the operation cabin.
4). 200M3 bucket drdeger are dismountable. So they can be disassembled and assembled easily.
5). Customized designs will be made based on customers' project requirements.
6). All the dredgers are built by skilled workers and inspected strictly to assure the high quality and durability.
7). Best parts will be used for the dredgers, like world famous Cummins engines, Hangzhou gearboxes, Simens PLC control system.
8). Professional engineers will be sent to the project site to insist the customers on the installation, commissioning, testing of the dredgers and Construction training
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
