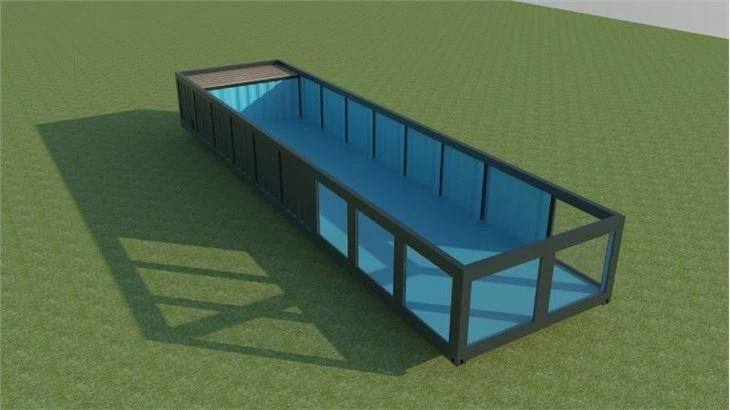

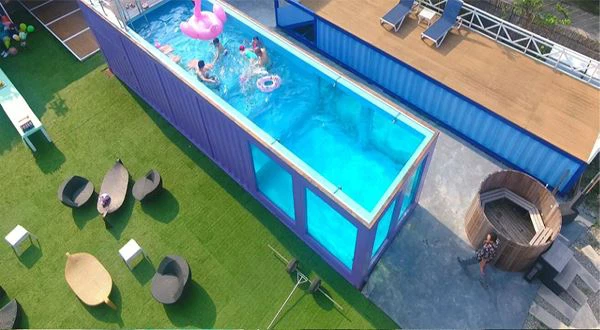

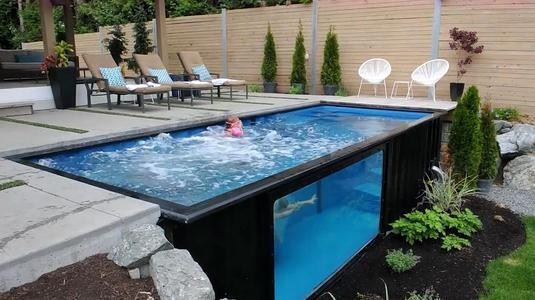

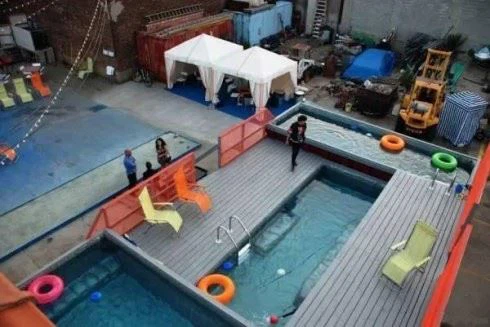

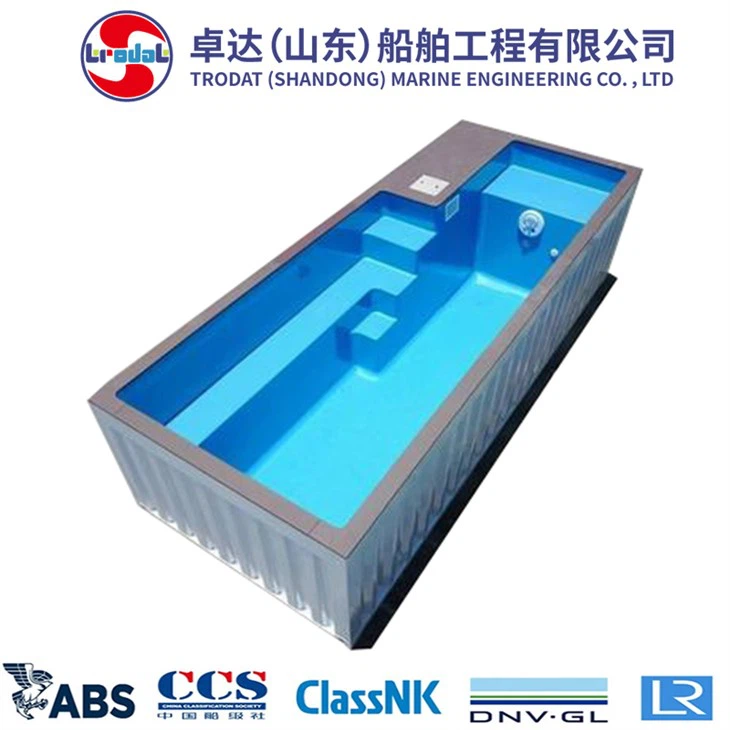

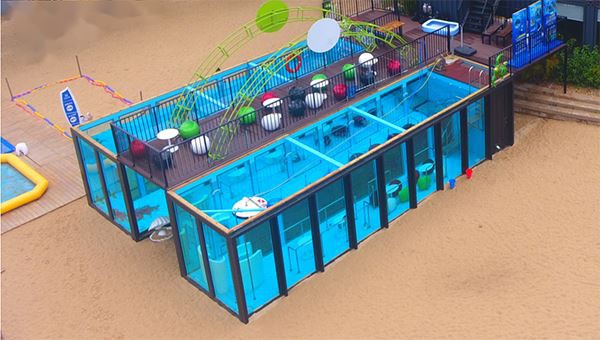

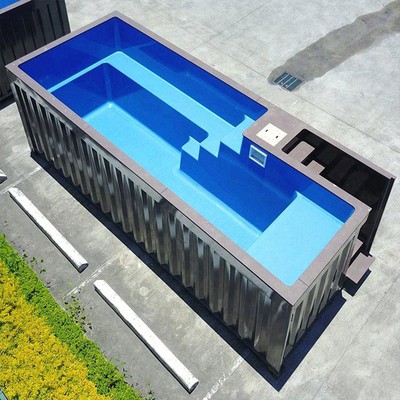

Container pools are modular in design and support a variety of application scenarios such as patios, playgrounds, beaches, hotels and more. It supports adding pumps, filters and many other equipments on the pool. The patio container pool is semi-permanent and uniquely portable and can be moved with relocation.
High Quality and Durable
The frame of the pool is made of 150*150mm galvanized steel pipe welded together. The windowless area is welded with 1.6mm container corrugated sheet, which is sandblasted according to the rust-proofing process of containers, our container swimming pool is more durable than ordinary prefabricated containers. Waterproof lining, internal welding, internal painting and other methods are used to prevent leakage.
Compared with above ground swimming pools, the labor cost of installing a container swimming pool is lower, and the follow-up maintenance cost required is also lower. Its modularity speeds up installation without additional excavation or renovation costs.
Customization
Our factory supports to customize the appearance, size and function of the container pool according to customer's preference. The main body of the container pool and all the supporting equipment will be professionally inspected and tested before leaving the factory.
Container pools are equipped with professional filter equipment, which can always keep the water clean. Insulated walls can better maintain constant temperature. The supporting circuit breaker can also guarantee the safety of playing.
Parameter Table
-
Size of swimming pool:
L5800 * W2250 * H1500mm
-
Pool configuration:
1 set of internal ladder, 1 set of underwater ladder platform, 1 set of circulating filtration system, 1 set of equipment room, 2 pieces of glass and 4 underwater lights.
-
Bottom plate of swimming pool：
The frame is welded by 150 * 150mm galvanized steel pipe, which is subject to sand blasting and rust prevention treatment. The upper surface is paved with 5mm galvanized steel plate. Ladder installation, convenient for ladder installation and fixation; A water return port is set to facilitate circulating filtration and drainage.
-
Side plate of swimming pool:
The frame is welded by 150 * 150mm galvanized steel pipe. 1.6mm container corrugated plate shall be used for welding at the place without windows, and the corrugated plate shall be sandblasted according to the container rust prevention process
-
Floor to ceiling windows of swimming pool:
Verdera Medicine Cabinet Mounting Bar
-
Equipment room:
Equipment room is set at the short side of the swimming pool, and circulating filtering equipment is installed. Including one color steel sandwich panel double door.
-
Paint:
The interior of the swimming pool is painted with special paint for the swimming pool. The specific color shall be subject to the confirmation drawing.
-
Platform:
There is a plastic wood platform on the top of the swimming pool, including step stairs.
-
Circuit:
Including switch and lighting of distribution box, circuit breaker, swimming pool lamp, circulating filter system and equipment room.
Parameter Configuration List
|
Design parameter item |
System integration/Automatic Production Line |
|
The water volume(m³ ) |
GCRT-125EWCE |
|
cycle time(h) |
1h |
|
circular flow(m³/h) |
15.6m³/h |
|
Sand cylinder filter speed(m³/h) |
V650 15.6m3/h *1 |
|
filtering medium |
silica sand |
|
filtration rate |
intermediate speed |
|
Design filter speed (m³/h) |
15.6m3/h |
|
Design pressure of circulation line |
0.4Mpa |
|
Vertical load bearing design |
1.7T/㎡ |
