The cutter suction dredger is a stationary dredger equipped with a cutter device (cutter head) which excavate the soil before it is sucked up by the flow of the dredge pump(s).

During operation the dredger moves around a spud pole by pulling and slacking on the two fore sideline wires. This type of dredger is capable to dredge all kind of material and is accurate due to their movement around the spud. The spoil is mostly hydraulically transported via pipeline, but some dredgers do have barge-loading facilities as well.

Sea going cutter suction dredgers have their own propulsion, however this is only used during (de) mobilization.

The origin of this quote is by Prof.Ir. W.J.Vlasblom.

Read more at ->>>

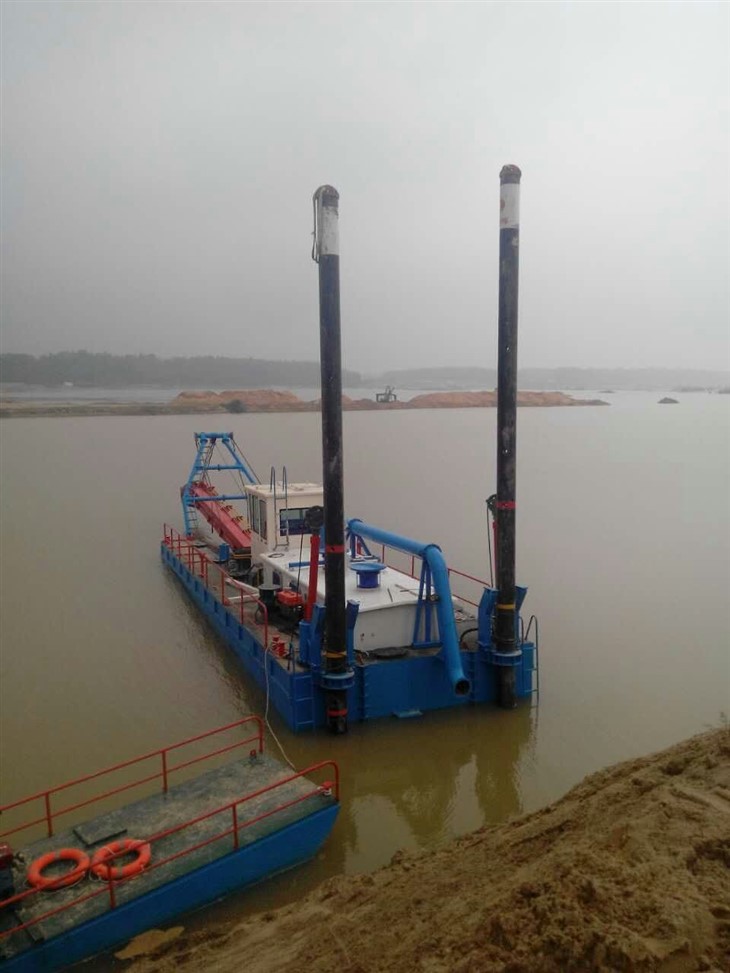

Please download specification sheet of CSD200 8inch Cutter Suction Dredger ->>>

Please click structure diagram to get technical details of CSD200 8inch Cutter Suction Dredger->>>

Structure Diagram of Cutter Suction Dredger
1	main body		7	emergency generator
2	Warman mud pump		8	deck crane
3	main engine of mud pump		9	anchor
4	hydraulic system	hydraulic pump (video)	10	battery
		SIEMENS PLC	11	anti-corrosive treatment
		hoisting winch	12	anti-corrosion zinc block
		side winch	13	fire protection and lifesaving
		hydraulic cutter	14	options	throwing anchor rod
		hydraulic bucket-wheel			trolley
		oil cylinder			anchor boat
5	auxiliary hydraulic engine				bucket wheel
6	gland pump				survey
