Cutter driving Bucket wheel device of dredger
Quick Details
Applicable Industries:cutter suction dreger
Condition:New
Type:Cutter head
Power Type:Diesel
Dredging Depth:10 m
Draught:140 cm
Place of Origin:Shandong, China
Brand Name:TRODAT
Warranty:1 Year
After-sales Service Provided:Video technical support, Online support, Field maintenance and repair service
Cutter Dia.:1700mm
Power:170kw
R.P.M:10,20,30
Dispalcement:21490ml
Torque:50KN.m
Cutting Force:2700
Cutting Speed:2.7m/s
Working Pressure:16Mpa
Cutter Teeth:35ZGMn13
Cutter Arm Quantity:5
Product Introduction

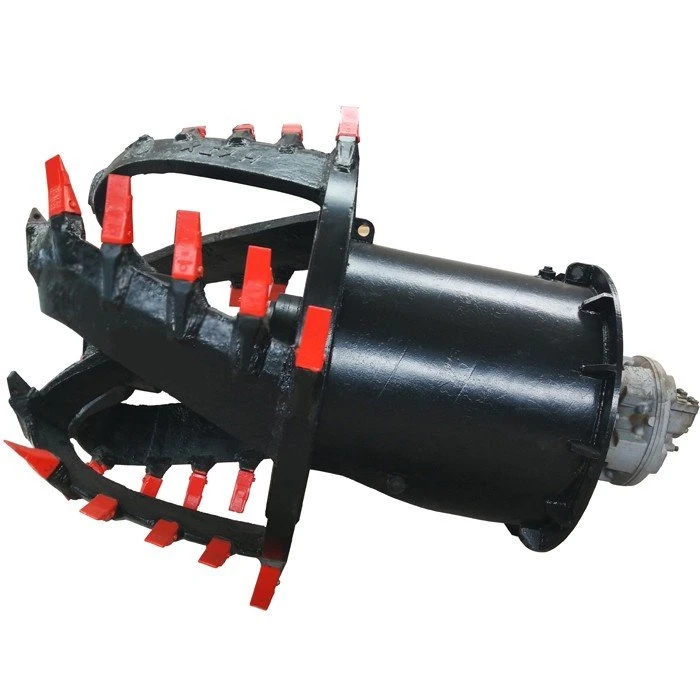

Cutter driving device of dredger is equipped at the forefront of the cutter suction dredger. Since the dredging process starts with excavation and slurry creation, a cutter suction dredger's performance is mainly defined by its cutter head.
According to the usage and working environment, the cutter head can be divided into Multi-purpose Cutter head, Loose-sand Cutter head, Light-duty Rock Cutter head, Cutter head with cutting edges and other customized cutter heads, etc.
The Multi-purpose cutter head is most commonly used cutter head for the cutter suction dredger because of its replaceable tooth system. And it can be equipped with pick points, narrow or flared chisels, depending on the soil encountered in the specific area. The replaceable tooth system is designed for easily changing the teeth after they have worn out, using a simple yet effective locking system. The size of the teeth depend on the size of the cutter head.
Prameter for Cutter Head
| Model | CSD150 | CSD200 | CSD250 | CSD300 | CSD450 | CSD500 | CSD600 |
Cutter Dia. | 1000 | 1300 | 1300 | 1500 | 1700 | 2050 | 2200 |
Motor Quantity/Power(kw) | 1/30 | 1/50 | 1/50 | 1/80 | 1/170 | 4/300 | 4/500 |
R.P.M | 30 | 10.20.30 | |||||
Displacemet(ml) | 3960 | 10170 | 10170 | 11870 | 21490 | 42000 | 60000 |
Torque(kn.m) | 9.5 | 22 | 22 | 25 | 50 | 96 | 160 |
Cutting Force | 700 | 1500 | 1500 | 1600 | 2700 | 4100 | 6700 |
Cutting Speed(m/s) | 1.6 | 2.0 | 2.0 | 2.4 | 2.7 | 3.2 | 3.5 |
Working Pressure(Mpa) | 16 | ||||||
Cutter Teeth | 25/ZGM13 | 30/ZGM13 | 35/ZGM13 | 40/ZGM13 | |||
Cutter Arm Quantity | 5 | ||||||
Cutter Arm Material | ZG35SiMn | ||||||
Replace Frequency | 180 | 180 | 180 | 160 | 130 | 120 | 120 |
Main Features
* 1. up to 2200mm in diameter
* 2. up to 1,400kW of the cutting power
* 3. refined teeth and cutting edge design
* 4. variety of cutterheads to meet your requirement
* 5. low cost for productivity
* 6. easy maintenance (replaceable teeth system)
We supply also mud bucket dredging,sand bucket dredger,grab hopper,Bucket wheel driving device of dredger.
