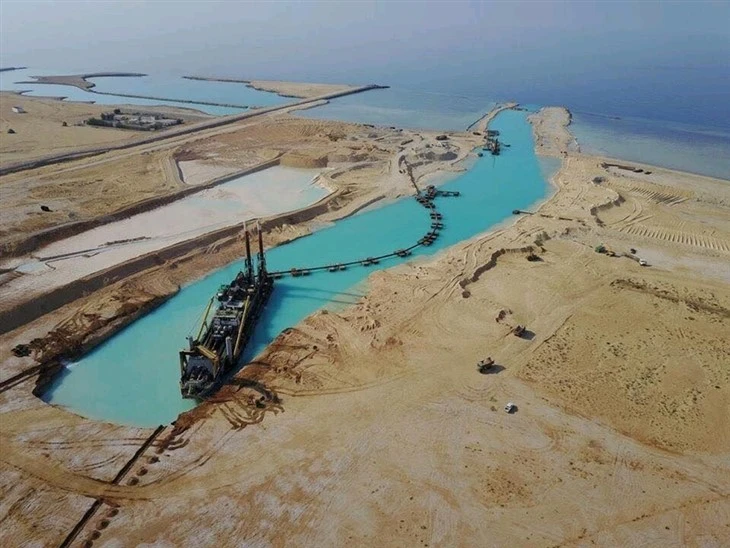

The cutter suction dredger is a stationary dredger equipped with a cutter device (cutter head) which excavate the soil before it is sucked up by the flow of the dredge pump(s).
During operation the dredger moves around a spud pole by pulling and slacking on the two fore sideline wires. This type of dredger is capable to dredge all kind of material and is accurate due to their movement around the spud. The spoil is mostly hydraulically transported via pipeline, but some dredgers do have barge-loading facilities as well.
Sea going cutter suction dredgers have their own propulsion, however this is only used during (de) mobilization.
The origin of this quote is by Prof.Ir. W.J.Vlasblom.
| Structure Diagram of Cutter Suction Dredger | |||||
| 1 | main body | 7 | emergency generator | ||
| 2 | Warman mud pump | 8 | deck crane | ||
| 3 | main engine of mud pump | 9 | anchor | ||
| 4 | hydraulic system | hydraulic pump (video) | 10 | battery | |
| SIEMENS PLC | 11 | anti-corrosive treatment | |||
| hoisting winch | 12 | anti-corrosion zinc block | |||
| side winch | 13 | fire protection and lifesaving | |||
| hydraulic cutter | 14 | options | throwing anchor rod | ||
| hydraulic bucket-wheel | trolley | ||||
| oil cylinder | anchor boat | ||||
| 5 | auxiliary hydraulic engine | bucket wheel | |||
| 6 | gland pump | survey | |||
Applications
√ dredging for river, port, channel
√ sediments extracting from under water, such as mineral rubble, sand
√ land reclamation
√ construct new waterway for submarine/harbor use, agricultural use
