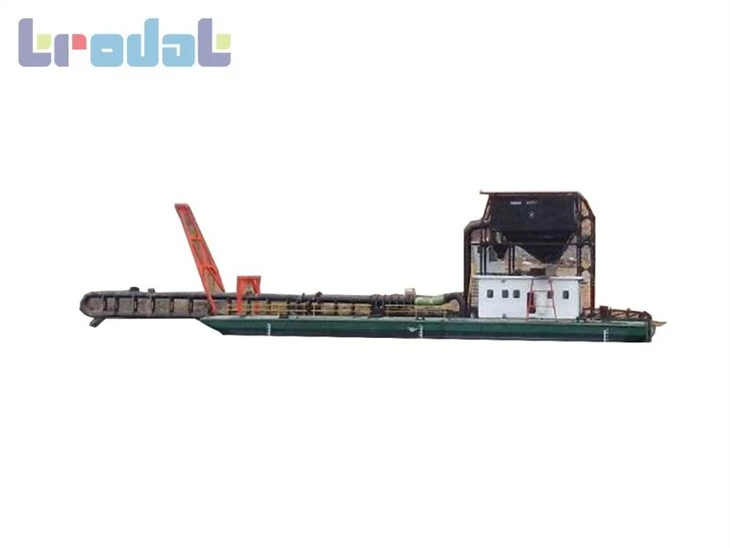

6 8 10 12 inch jet suction dredger
Quick Details
Weight:20ton（min）
Certification:ISO9001:2008
Warranty:1 Year
After-sales Service Provided:Free spare parts, Online support, Field installation, commissioning and training, Engineers available to service machinery overseas
Usage:Dredging Mud/sand/mining
Discharging distance:1200m
Water flow:1800 M3/hour
Working capacity:220m3
Suction end diameter:400mm
Discharge end diameter:300mm
Total power:670kw
Cutter head Diameter:1200mm
6 inch Jet suction dredger of steel construction, the non self-propelled, dismountable type is able to berth and dredge at any waters both in the coastal area and inland rivers, with similar conditions to that in navigation area "A" or below the "A"-line specified in code for "inland river steel engineering ship manufacture of P.R.China".
8 inch Jet suction dredger can be used to excavate and transport cohesive sediment below the class III specified in code for "dredging engineering construction technical specification" issued by Ministry of Water Resources (MWR) of P.R.China.
10 inch Jet suction dredger consists of a main pontoon and two side pontoons. The construction makes disassemble quickly and easier to transport by road, rail or sea, also more convenient to replace at site. Engine and dredging pump are on the main pontoon. Side pontoons could be used as oil storage tank, ballast tank and dry cabin.
The spacious control cabin is ergonomically designed with 360 degree view. All the operation buttons, switches, indicators, gauges are equipped on the control desk. Only two operators can control 12 inch Jet suction dredger in the operation room.
Four layers anticorrosive marine paint provide the zinc anode protection to improve effect of corrosion.
| SPECIFICATIONS FOR Cutter Suction Dredger | ||||||
Model | TJD100 | TJD200 | TJD300 | TJD400 | TJD450 | TJD500 |
Water Flow(m/h) | 280 | 800 | 1800 | 3000 | 3500 | 5000 |
Length(m) | 19 | 26 | 35 | 40 | 41 | 43 |
Width(m) | 3.5 | 5.3 | 6.6 | 7.5 | 8 | 9.5 |
Height(m) | 1 | 1.5 | 1.8 | 2.2 | 2.5 | 2.5 |
Max.dredging depth(m) | 8 | 12 | 15 | 15 | 17 | 18 |
Suction end diameter(mm) | 150 | 250 | 400 | 500 | 650 | 650 |
Discharge end diameter(mm) | 100 | 200 | 300 | 400 | 450 | 500 |
Total power(KW) | 132 | 336 | 670 | 1000 | 1166 | 2364 |
Cutter head Diameter(mm) | 650 | 950 | 1200 | 1500 | 1700 | 2000 |
Discharge distance(m) | 400 | 800 | 1200 | 1500 | 1800 | 3000 |
Main Features
1) CCS ISO9001:2008 Certificate;
2) The cutter suction gold dredger is a kind of dismountable cutter suction dredger and non-propelled;
3) The cutter is directly driven by one low speed hydraulic motor;
4) The two spuds are operated by means of a hydraulic ram;
5) Oil for the hydraulic system is supplied by vane pumps.
FAQ
1) I never used this kind of machine, is it easy to operate?
Our engineers will guide you in the installation and use, and there are english manual and guide video that show how to use machine.
2) What should I do if the machine has any problems after I order it?
Free parts send to you in machine warranty period if machine have any problem.Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you solution from phone and skype.
