advantage
01
Reliable and Efficient
The key component like engine, pump and hydraulic system are adopted the international brand.
02
Tested in pool before delivery
Quality testing for each dredger before delivery to ensure all func-tion working properly.
03
High-Quality Services
experienced engineers to guide installing and training local workers. 24/7 technical support standby, Free spare parts in thefirst year, low cost for services.

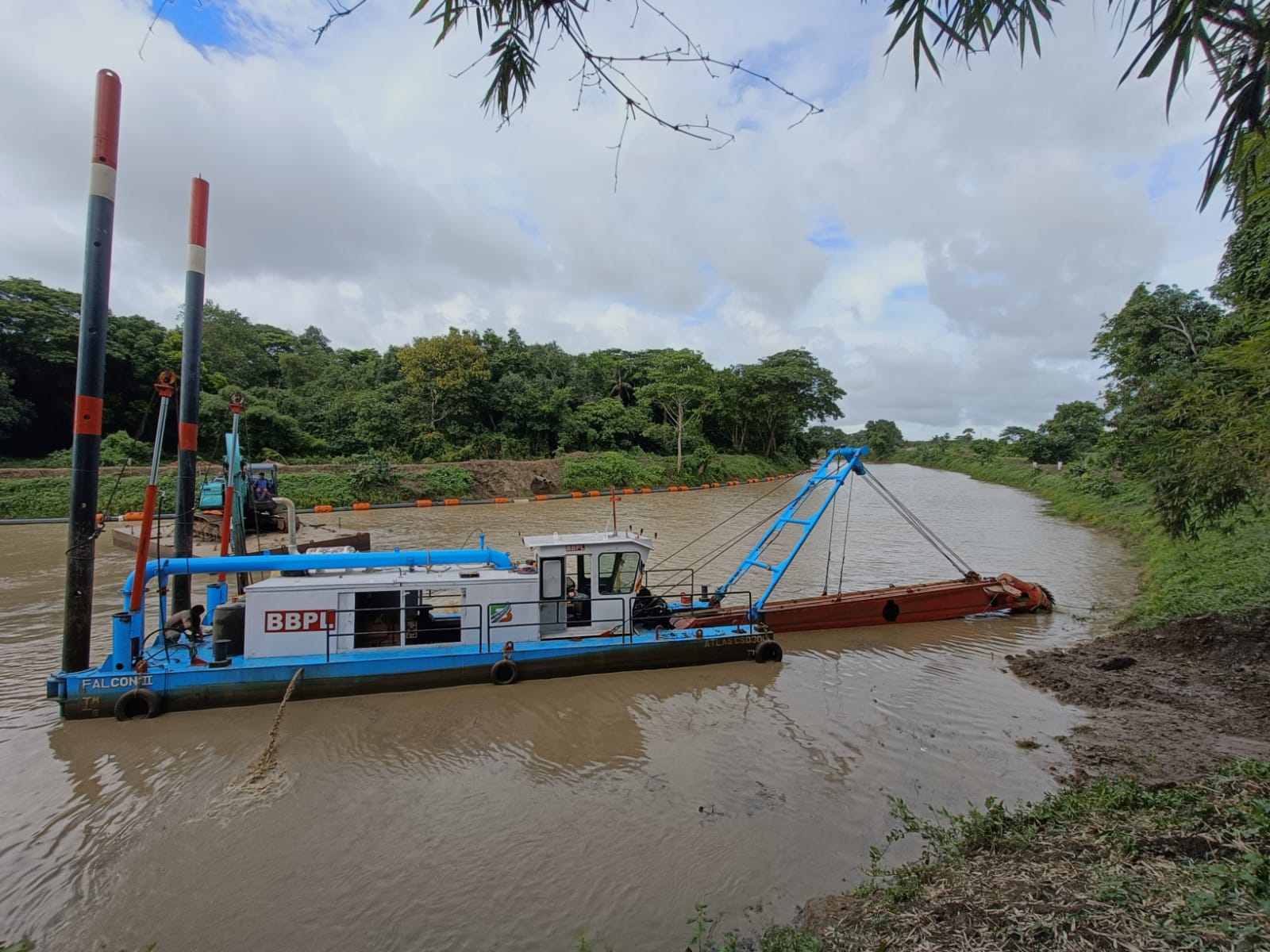

comparison of cutter suction dredger parameters
| Dredger LOA |
24.5 M |
| Hull Size (L*B*H) | 16*6.2*2 M |
| Main Pontoon (L*B*H) | 11.6*2.2*2 M |
| Side Pontoon (L*B*H) | 14*2*2M |
| Structure | box-strucure |
| Main engine Modle&Power | cummins 298kw/jichai 330kw/weichai 294kw |
| harbour generator | cummins 20kw/jichai 20kw/weichai 20kw |
| total power | cummins 318kw/jichai 350kw/weichai 314kw |
| Dredging Pump | Warman Technology |
| Discharge pipe inner Dia. | 250 mm |
| Head | 30m |
| Max. dredging depth | 9m |
| Water flow | 1000m³/h |
| Solid sand capacity | 200m³/h |
| Discharge distance | 1000m |
| Cutter head Dia. |
1300mm |
| Cutter power | 50kw |
| Draught | 1.2m |
| Displacement | 98T |
| Hydraulic control system | PLC Siemens |
| Wire rope pulling force (Lifting winch )*Quantity | 40KN*1 |
| Wire rope pulling force (Traversing winch )*Quantity | 40KN*2 |
| Operation room | Adjustable chair, movable side-window, air condition, PLC system,signal lights and floodlights |
| Total fuel oil consumption | 45L/H |
| Total weight | 60T |
