1.Basic Description of TD-6C Non Self-Propelled Auger Cutter Suction Dredger
Efficient and low energy consumption, latest high-efficiency rake blade transmission system, fresh water cooling system. The TD-6C Non Self-Propelled Auger Cutter Suction Dredger is composed of two floating bodies and an engine room. Before delivery, our TD-6C Non Self-Propelled Auger Cutter Suction Dredger has been fully assembled and tested, and can be easily and quickly installed on site to operate the standard design. The delivery is timely and designed according to the standards of coastal waters.
|
Parameter |
TD-6C |
Remark |
|
Overall Length (m) |
~7.7m |
|
|
Molded Length (m) |
7m |
|
|
Molded Breadth(m) |
2.25m |
|
|
Molded Depth(m) |
1m |
|
|
Average Draft(m) |
0.5m |
|
|
Powered Diesel Engine |
R4105 |
|
|
Power(kw) |
65KW/88hp |
|
|
Speed(r/min) |
1500r/min |
|
|
Auger Assembly |
TD-450X2250 |
|
|
Auger Diameter(mm) |
450mm |
|
|
Length(mm) |
2250mm |
|
|
Peak Speed(r/min) |
30r/min |
|
|
Transmission Device for Auger |
Driven by Hydraulic Motor |
2units |
|
Peak Speed (r/min) |
0-30r/min |
|
|
Submersible Sludge Pump |
ZJQ-100 |
|
|
Clear Water Capacity m3/h |
100-150m3/h |
|
|
Speed(rpm) |
1440r/min |
|
|
Pump Suction/Discharge Diameter(mm) |
133mm/133mm |
|
|
Head(m) |
16m |
|
|
Max Excavating Depth(m) |
5m |
|
|
Transporting Distance(m) |
0-200m |
|
|
Pump's Motor Power(kw) |
18.5KW |
Frequency Variable |
|
Lifting Device of Bridge |
Driven by Hydraulic Winch |
|
|
Pulling Force(KN) |
10KN |
|
|
Propulsion system |
Driven by Hydraulic Winch |
|
|
Pulling Force(KN) |
10KN |
2sets |
|
Hydraulic Pump Station |
Driven by diesel engine |
|
|
Generator |
||
|
Generator Power (kw) |
30KW |
|
|
Transportation Pipeline |
Prepared by Users |
|
|
Material |
PE pipe |
|
|
Inner Diameter (mm) |
100mm |
|
|
Wall Thickness (mm) |
10mm |
|
|
Length per Knot (m) |
||
|
Floaters |
Prepared by Users |
|
|
Material |
Cover made of PE, inner core made of rigid foam PE |
|
|
Inner/Outer Diameter of Floater (mm) |
||
|
Length of Floater (mm) |
||
|
Quantity |
|
|
|
Production Time |
30 days |
|
|
Price in RMB, yuan |
¥210,000.00 |
EXW China |
Notes:
1: The hull of this TD-6C Non Self-Propelled Auger Cutter Suction Dredger is square and has a transverse skeleton structure. The hull is structured of welded steel which is made of steel plates with good welding performance.
2:The working principle of an auger cutter suction dredger is to use the cutting force of the auger cutter to mix sand, silt, and other sediments into mortar, and then suck and extract the sand through powerful dredging pump and directly transport it to the shore.
2.Material of this TD-6C Non Self-Propelled Auger Cutter Suction Dredger
Gantry frame: 12 # square tube frame structure
Other materials used: steel plates, pulleys, etc
Augger suction bridge:
Frame structure: Φ133 steel pipe
Other materials used: panels, steel plates, pulleys, etc
Floating body:
Steel plate: Bottom 5mm, side 5mm, surface 5mm Anti sliding plate
Rib angle steel: 5 # Rib spacing: 0.6 meters
Sand suction pipe: Φ133 steel pipe
Other materials used: panels, steel plates, etc

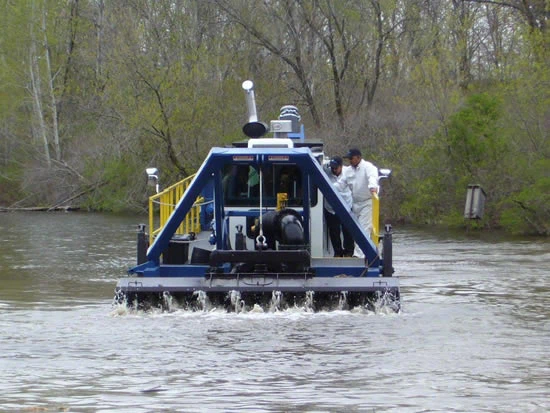

3.Application Scenarios of our TD-6C Non Self-Propelled Auger Cutter Suction Dredger
Certificate and Qualitification
ISO2008:9001 international quality system certification
Shipbuilding Production Qualification (Level III, Class II) of China
