Trodat CUTTER HEAD

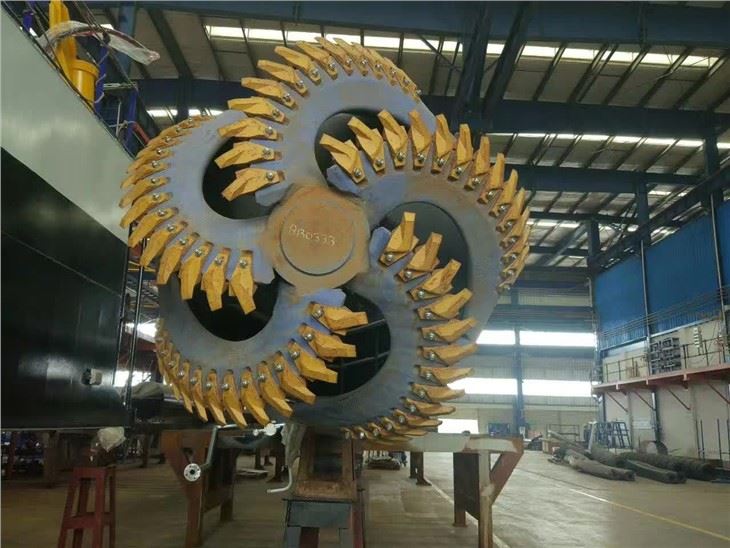

Cutter Suciton Dredger head
The cutter head is integrated within vessels to deliver high productivity and minimal downtime thanks to the profile, spacing and size of the arms, as well as the location, orientation and form of the teeth. In loose compacted soil, it makes better use of the available power, resulting in a higher output of dredged material thanks to its cylindrical shape and availability of more arms.
CE, SGS, ISO9001 certificate
Provide online video technique teaching of install
one-years warranty
Provide customized diameter and power
comparison of product parameters
|
Model |
TDCD-1300-80, 5BLADE CUTTER |
| Power of spindle | 80KW |
|
Diameter |
1300mm |
|
Max. Rotation Speed |
30rpm/min |
| OEM | Yes |
| Hydraulic gearbox | with clutch and oil cooler |
| Type | 3PL-300 |
| Speed reduce rate | 1:1/1.06:1 |
| Input speed | 1500r/min |
| Transfer capability | 0.26KW/rpm |
The cutter head is provided with a protective housing, with a steel plate welded to each side of the lower edge of the protective housing and to the front stiffening ribs.
A steel plate is welded to each other where the steel plates meet; the environmental protection cutter head is also provided with a horizontal adjustment device, the horizontal adjustment device is used to adjust the angle of the said reamer.
The environmental protection cutter head is provided with a protective cover shell, which effectively blocks part of the clear water in the upper lake from entering.
The mud cavity and the dredged soil are mixed, and under the effect of negative pressure, the inhaled substrate increases and the water volume decreases, thus forming a mud with high water content and effectively improving the solids content of the mud.
