Recommended ship structure

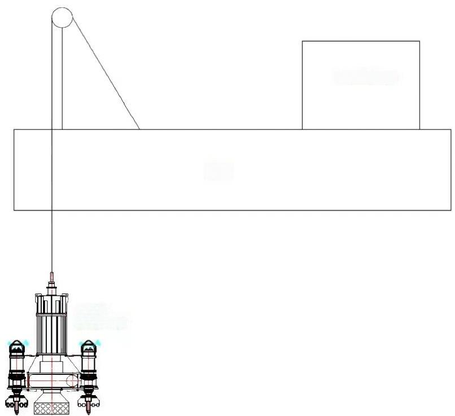

The above structure is a reference structure. The cutter suction equipment is lowered vertically to the bottom of the river to pump mud and sand,and the mud discharge port is discharged from the stern end of the ship and connected to the mud discharge pipe.
| item | parameter | Remark |
| Planned daily dredging volume | 1200m³/day | work for12 hours per day |
| Total dredging volume | 900000m³ | |
| Engineering cycle | 2.5 years finish | |
|
Main suction sand pump parameters |
Water:400m3/h,Head 50 meters, speed 900rpm |
|
|
Main suction sand pump motor power |
160kW | |
| auxiliary reamer | 22KWx2=44KW | |
| main pump control | Frequency Control | |
| Reamer Control | Frequency Control | |
|
Total capacity of power transformer |
400KVA,460V,60Hz | |
| Drainpipe diameter | DN150 | |
| Material of mud pipe | PE+floating body | |
| row spacing | 2-3kilo | |
| Control cabin |
Integrated operation console, transformer,frequency conversion cabinet |
Technical plan
According to the provided field data,the initial mud layer depth is 15 meters,the dredging depth is about 10-15 meters,and the average width of the lake is 10 meters.Therefore,considering small ships,the total width is limited to about 5 meters (to be verified).The ship has no self-propelled capability and is towed by cables or yacht-like equipment
Recommended ship structure
The above structure is a reference structure.The cutter suction equipment is lowered vertically to the bottom of the river to pump mud and sand,and the mud discharge port is discharged from the stern end of the ship and connected to the mud discharge pipe
